Buttweld fittings can be used in a wide variety of industries to alter, divide or end the flow of fluids. These operations include the following: waste treatment facilities, chemical processing, breweries, petrochemical facilities, cryogenic plants, paper production, gas processing and even nuclear power plants.
Types Of Buttweld Fittings:

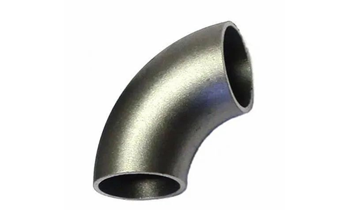

Pipe Elbow
It's often used for connection of hoses to water pumps, deck drains, and valves. The main use is just like the previously stated pipe, but the diameter is short. So this kind of piping elbow is often used when shortage of space.
View More Details| Outside Diameter | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Wall Thickness | 3mm – 40mm / SCH3, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius | R=1D – 10D, 15D, 20D |
| Product’s Angle | 5° – 180° Elbows, 90° and 45° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |

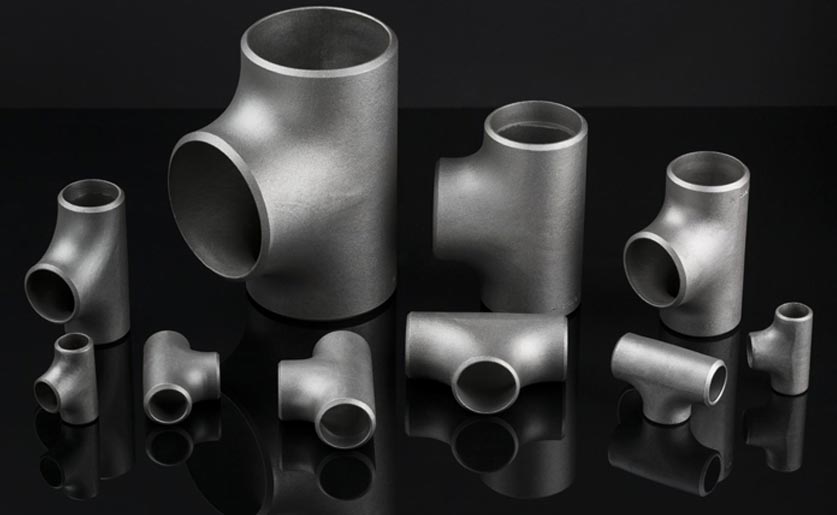

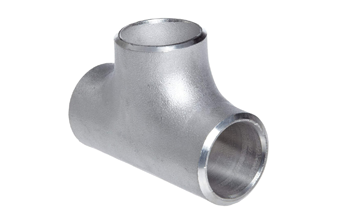

Pipe Tee
A tee, the most common pipe fitting, combines or divides fluid flow. Tees can connect pipes of different diameters, change the direction of a pipe run, or both. Available in various materials, sizes and finishes, they may also be used to transport two-fluid mixtures.
View More Details| Outside Diameter | Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
| Types | Equal Tees, Reducing Tees |
| Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| ISO Certified | Yes |

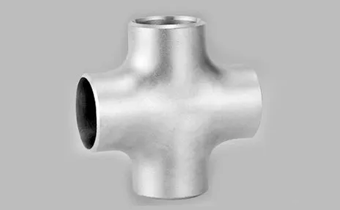

Pipe Cross
4-way cross pipe fittings are used to connect pipes and change or control flow through a piping system. Cross pipe fittings may stress pipes as temperatures change due to their four-way nature. Because of this, pipe crosses are generally not used as plumbing hydraulic components.
View More Details| Outside Diameter | Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
| Types | Seamless, Welded, Equal Cross, Reducing Cross |
| Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| ISO Certified | Yes |
Pipe Reducer
A pipe reducer is a pipe fitting that connects a larger pipe to a smaller pipe. Thus, it reduces the size of the pipe in the pipe system, from one size to another. Pipe reducers may frequently be used to connect pipes of different sizes.
View More Details| Outside Diameter | Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
| Types | Concentric Reducers, Eccentric Reducers |
| Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |

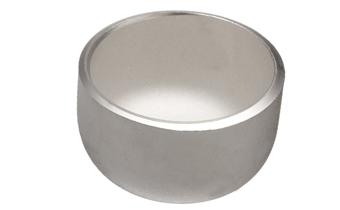

Pipe End Cap
PVC end caps are used at the end of tubing as a cover to fit over insulated pipe fittings in an insulation system. Made of polyvinyl chloride (PVC), these end caps are impact resistant and durable.
View More Details| Outside Diameter | 1/2″ – 48″ |
| Wall Thickness | 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| ISO Certified | Yes |

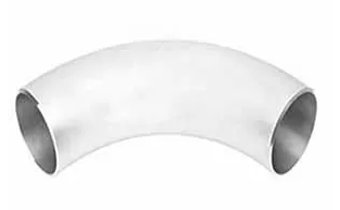

Pipe Bends
Pipe bending allows systems to minimize pressure changes while still routing materials through complex piping systems. As most bent pipes do not alter the ends of the piping, pipe bends are often easy to implement within a processing system using standard welding processes, flanges, or other connection methods.
View More Details| Outside Diameter | Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″) |
| Wall Thickness | 3mm-40mm / SCH55, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Product Angle | 0° – 180° |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |

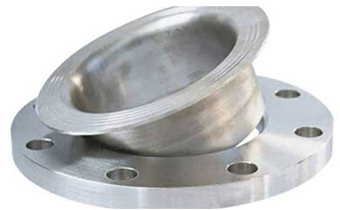

Stub End Lap Joint
A stub end and a lap joint flange are normally mated together by a gasket and two bolts. Lap joint stub ends can be produced with many different material grades such as stainless steel, alloy steel, carbon steel and low temperature service carbon steels. Stub end is available in long pattern and short pattern.
View More Details| Outside Diameter | 1/2″ – 24″ |
| Type | Long/Short Stub Ends |
| Wall Thickness | 2mm – 100 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
